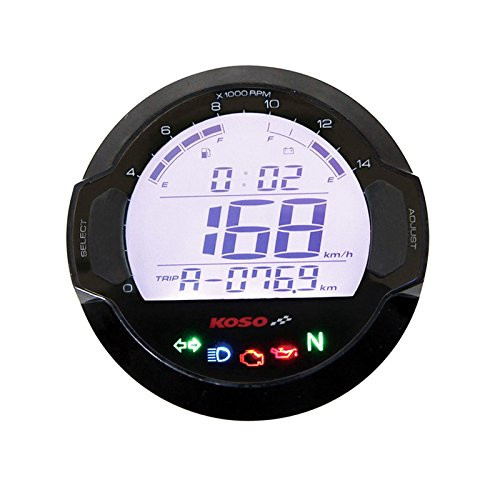

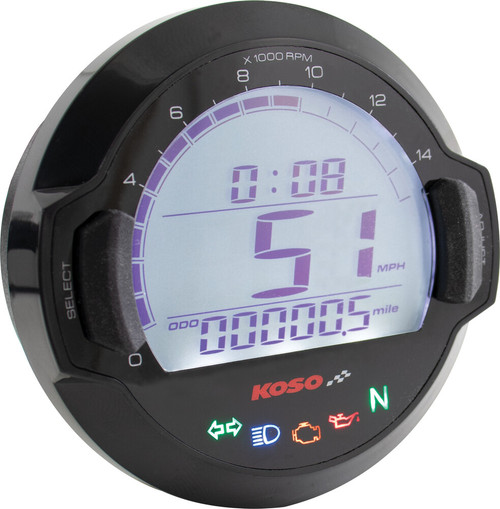

KOSO DL-03SR DIGITAL GAUGE BLACK BEZEL (BB642W20)

Koso

$169.95
SKU:
WPS-27-5796BK

Availability:
In Stock! Ships Within 24 Hours.
https://d3d71ba2asa5oz.cloudfront.net/12022010/images/wps-27-5796bk.jpg
This Product Qualifies for Free Shipping

MPN: BB642W20

Performs the following functions (unless noted in specific features of each gauge):

  • Speedometer w/top speed record (MPH or Km/H)
  • Odometer w/dual trip meter
  • Tachometer
  • Programmable shift light
  • Water and oil temperature
  • Fuel level
  • Clock
  • Indicator lights for neutral, high beam, oil pressure, turn indicator, and shift RPM
  • Includes gauge bracket, speed sensor, speed sensor bracket, and water/oil temperature sensors (1/8” pipe thread)
  • Can be used for cylinder head temperature (order optional sending unit)
  • Order water temperature sensor hose adapter separately if needed

RX-1N is available in either black panel w/white backlight or white panel w/blue backlight.

RX-2 is available in black panel with multi-colored backlight option (blue, yellow, purple, green, red).

RX-2N is available in black panel w/blue backlight in RPM range of either 0-10,000 or 0-19,000.

RX-2NR is available in white panel w/white backlight, this is a tachometer w/shift light only (no speedometer, clock, fuel gauge) with a single temperature gauge/temperature warning.

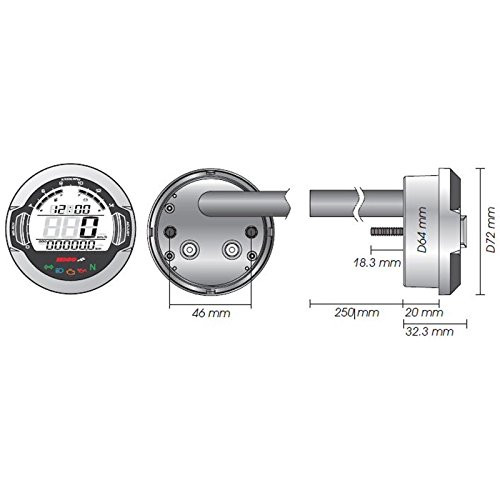

DL-03SR is available in either black or silver bezel and includes all functions listed above (except shift light), also includes a voltage meter. Measures 72mm in diameter, 33mm overall depth.

Type
Multi Gauges

Fitment
