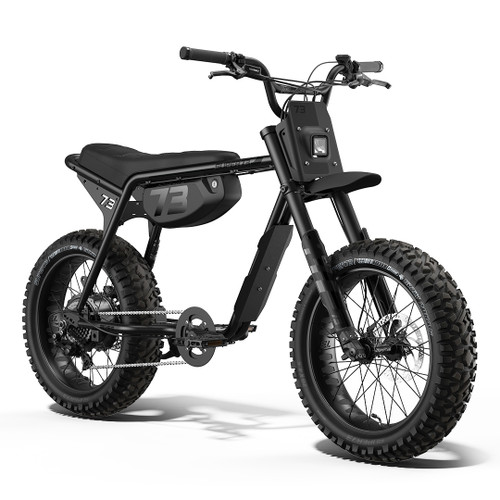

SUPER73 Legacy Series Z Adventure SE E-Bike

GO BOLD OR GO HOME

Life is full of compromises; your bike shouldn’t be one of them. Go above and beyond with the Z Adventure SE addition to our Legacy Series. Each model has been evolved to offer riders up to 30% more acceleration alongside upgraded suspension, 2 piston hydraulic brakes, and an uncompromising battery system. Leave the pristine roads behind and see why the Z Adventure SE is one of our most ambitious creations to date. For riders 16 years of age and older.

VEHICLE SPECIFICATIONS

PERFORMANCE

• Top Speed: 20 MPH
• Range: 35–45 miles*
  *35+ miles of range at 20 MPH under Class-2 throttle-only operation
• Charge Time: 7–8 hours
• Battery: 720 Wh (48V 15Ah) UL2271 Compliant
• Motor: 500W nominal
• Throttle: Thumb Throttle
• Gearing & Rear Derailleur: 8 Speed

DIMENSIONS

• Vehicle Weight: 75 lbs
• Length x Width x Height: 68" x 28.5" x 43.5"
• Rider Weight Limit: 325 lbs
• Recommended Rider Height: 5'1" – 6'8"
• Seat Height: 31"

FRAMESET

• Frame: Aluminum
• Suspension: Non-Adjustable Front / Rear Rigid
• Brakes: Tektro 2 Piston Hydraulic
• Tires: VEE GRZLY / 4.5" Front / 5" Rear
• Inner Tubes: 20" x 4.5"

LIGHTS & HORN

• Head Light: LED
• Tail Light: LED
• Horn: Yes

PROP 65 WARNING: Cancer and/or reproductive harm - www.P65Warnings.ca.gov
